Measured Mesh Analysis Display
Software Highlights – AUTOMATE

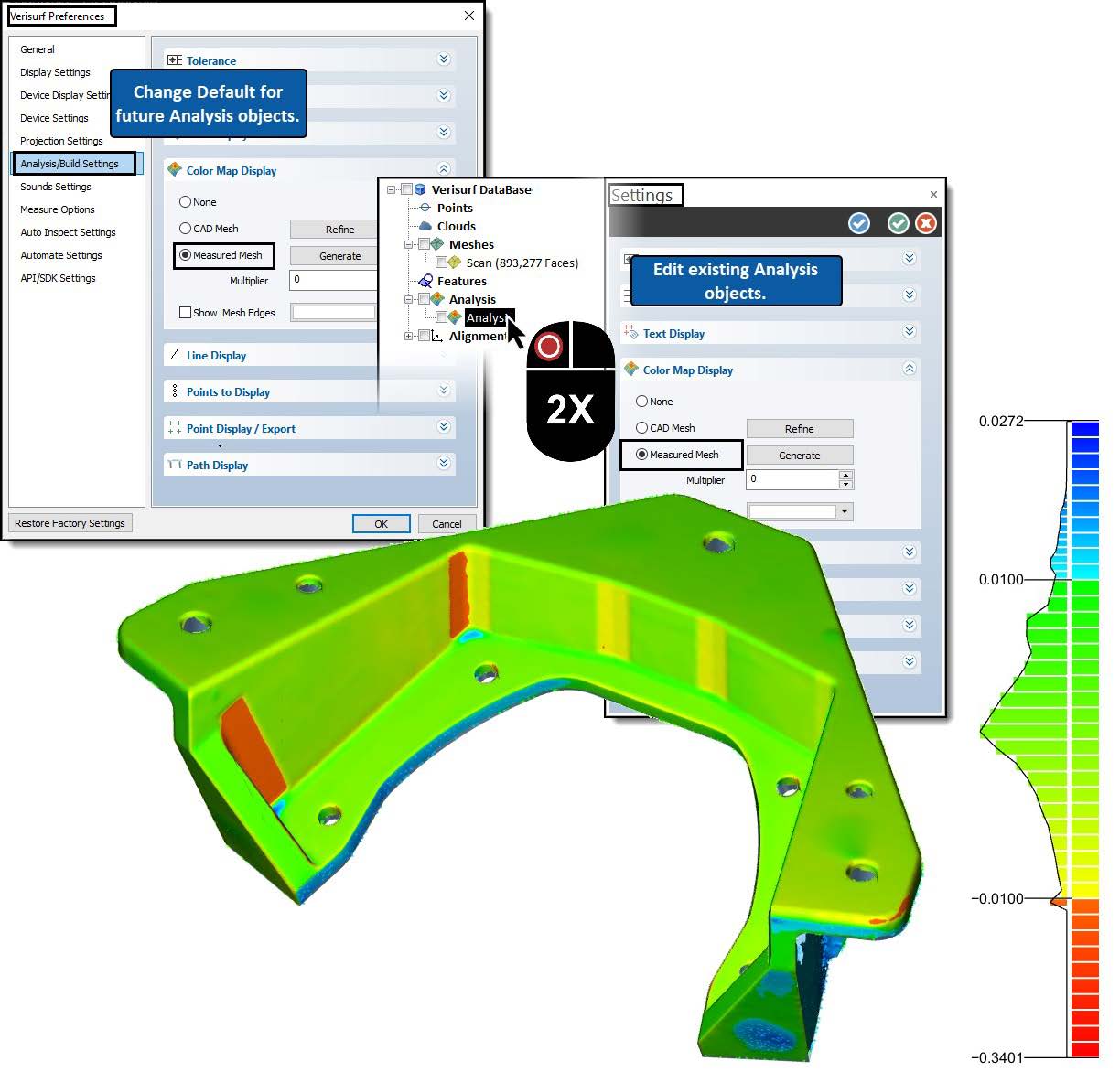

Verisurf allows automatic color mapping of meshes used for surface profile analysis. The color map will be automatically created when the Measured Mesh option is enabled. Previous Verisurf versions required the user to open the Analysis Setting and select the Generate button to generate the color map.
Note: Best Practice when using scan data for surface profile analysis is to use a mesh instead of a cloud(s); this allows you to achieve a rich color map that graphically represents the actual tolerance condition.
